NPE-180A2 - Condensing Tankless Water Heater - 150,000 BTU

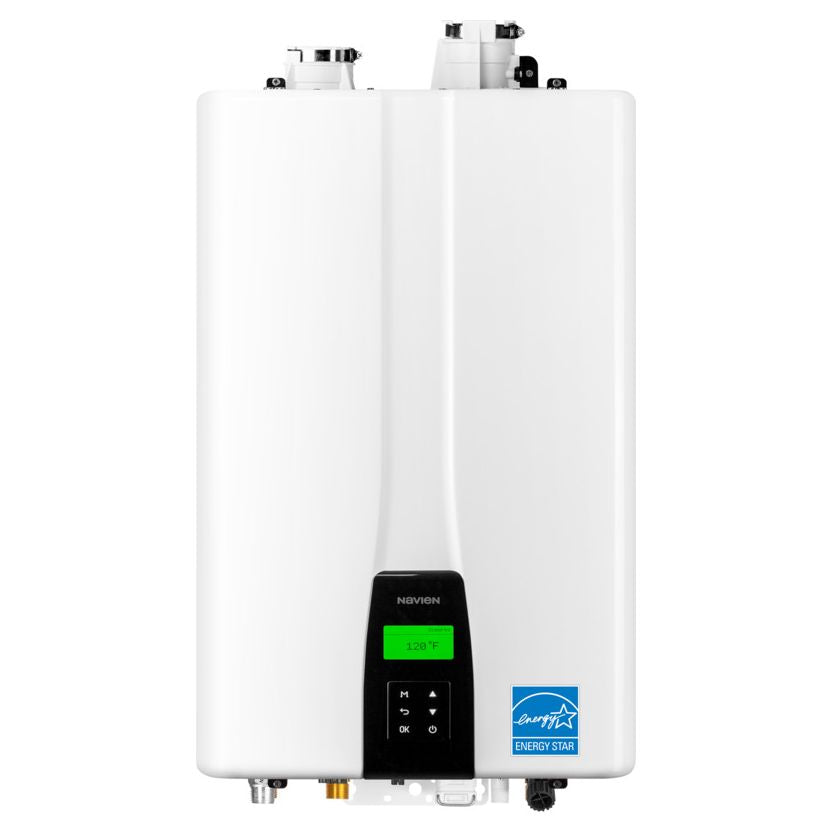

Navien NPE-180A2 - Condensing Tankless Water Heater - 150,000 BTU

The Navien NPE-180A2 is a high-efficiency condensing tankless water heater designed for residential and light commercial use. With a capacity range of 10,000 to 150,000 BTU per hour and a Uniform Energy Factor of 0.95, it delivers powerful performance while minimizing energy waste. The unit provides a maximum flow rate of 8.4 GPM at a 35°F temperature rise, making it suitable for multiple simultaneous hot water demands. Compact and wall-hung, it installs easily indoors or outdoors and supports field conversion between natural gas and propane.

Equipped with Navien’s dual stainless steel heat exchangers and a built-in recirculation pump, the NPE-180A2 offers exceptional durability and faster hot water delivery. It features the EZNavTM multi-line control panel with integrated HotButtonTM for user-friendly control, and it supports cascading and common venting with up to 12 units. Approved for 2" or 3" venting materials, it supports long vent runs and uses a 1/2" gas line up to 24 feet. With ultra-low NOx emissions and multiple built-in features, the NPE-180A2 meets a wide range of installation needs with high efficiency and flexibility.

Features

• 150,000 BTU/h input with 0.95 UEF efficiency
• Flow rate up to 8.4 GPM at 35°F rise
• Dual stainless steel heat exchangers
• Built-in recirculation pump
• Field convertible between natural gas and propane
• Ultra Low NOx emissions (20 ppm)
• EZNavTM multi-line control panel with HotButtonTM interface
• 1/2" gas line capable up to 24 feet
• Indoor or outdoor wall-hung installation
• Vents with 2" up to 75 ft or 3" up to 150 ft
• Cascading and common venting with up to 12 units

Applications

• Residential hot water systems
• Light commercial water heating
• Installations requiring high flow at high efficiency
• Projects needing venting flexibility and compact design
• Multi-unit configurations with cascading or common venting requirements

Navien NPE-A2 simply a smarter hot water system for today's life styles

Navien...the proven leader in condensing tankless, makes it even easier to install and set up with the new NPE-A2 series

The built-in recirculation pump allows the NPE-A2 to recirculate water either through an external recirc line or through existing supply lines while using NaviCirc®, without the need for external pumps or controls.
