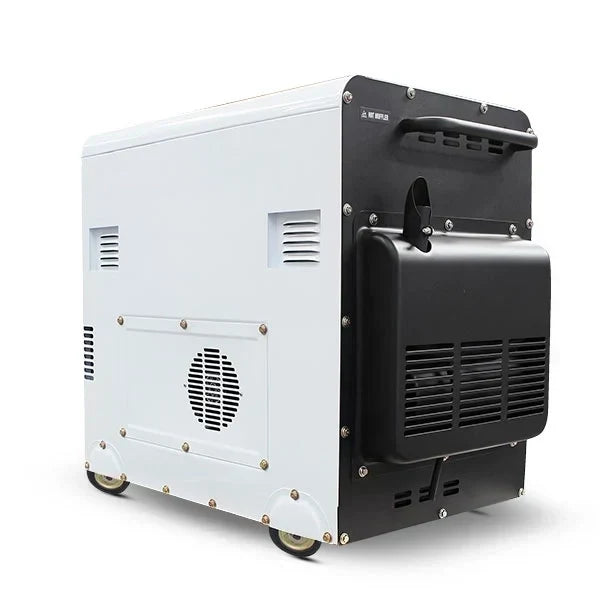

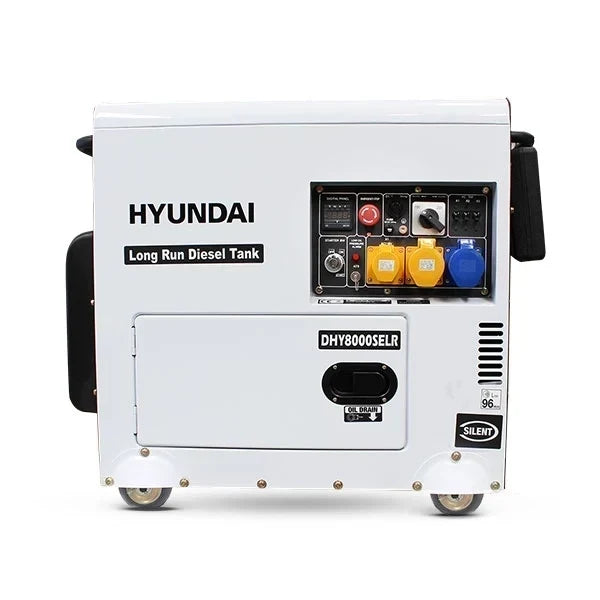

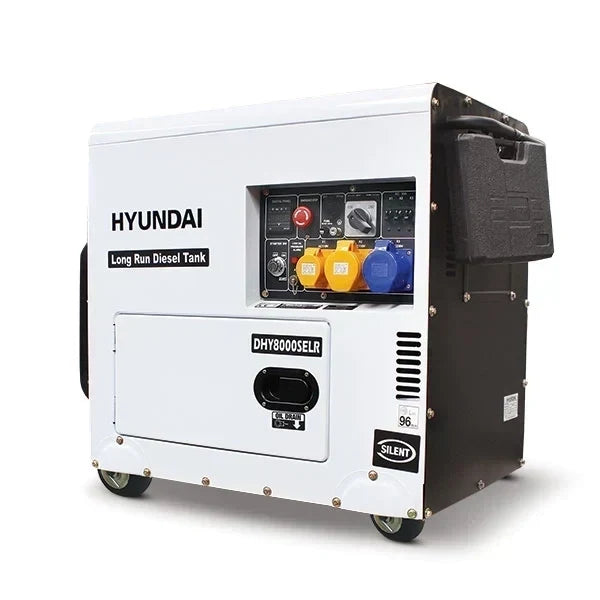

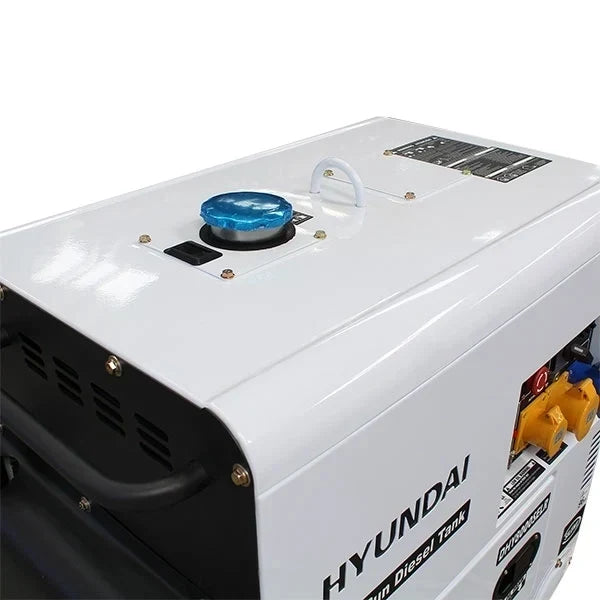

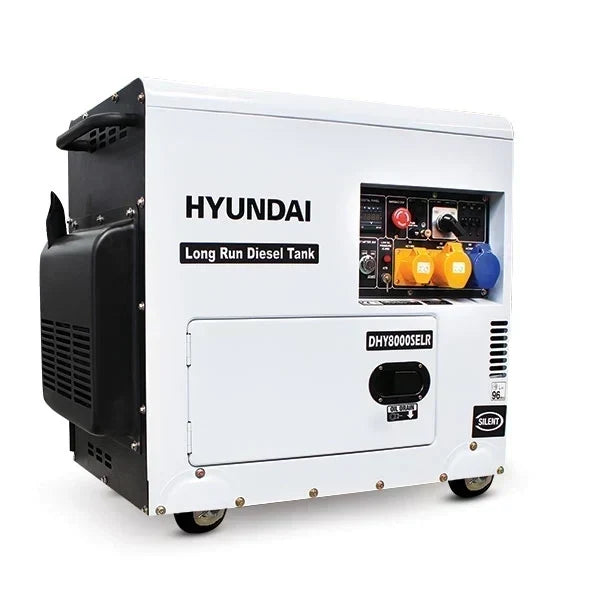

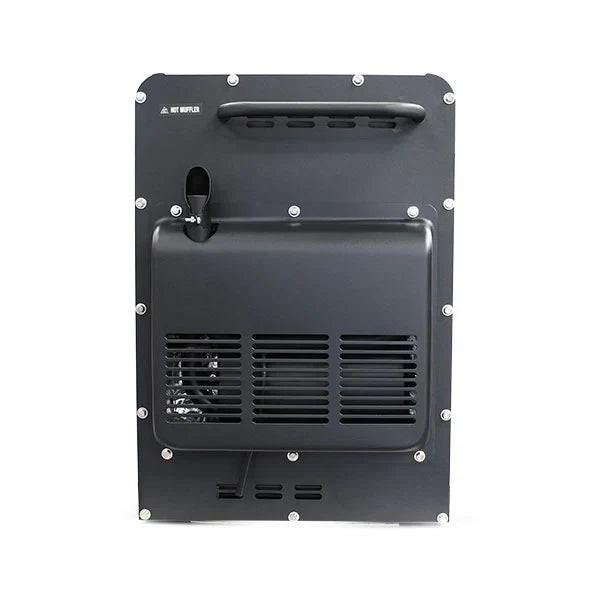

5.8kW/7.5kVA Long Run Standby Diesel Generator Single Phase

Features:

• Dependable long-running standby diesel generator for backup power
• Equipped with a 25L diesel tank for an increased running time of up to 30 hours.
• Powered by a 4-stroke, air-cooled D452 diesel engine.
• Produces a maximum of 5.8kW of standby power.
• Uses ATS capabilities to automatically start and shut down during a power cut. ATS is sold separately.
• Housed in a silenced case with a sound rating of just 70dB @ 7 metres.



Technical Specification:

• Model - DHY8000SELR
• Rated/Prime kVA* - 6.3
• Rated/Prime kW - 5
• Max/Standby kVA* - 7.25
• Max/Standby kW - 5.8
• Phase - Single
• Voltage - 115 / 230

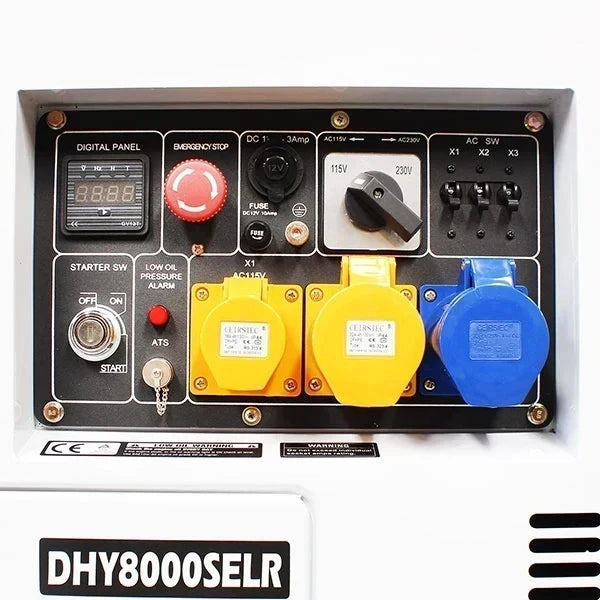

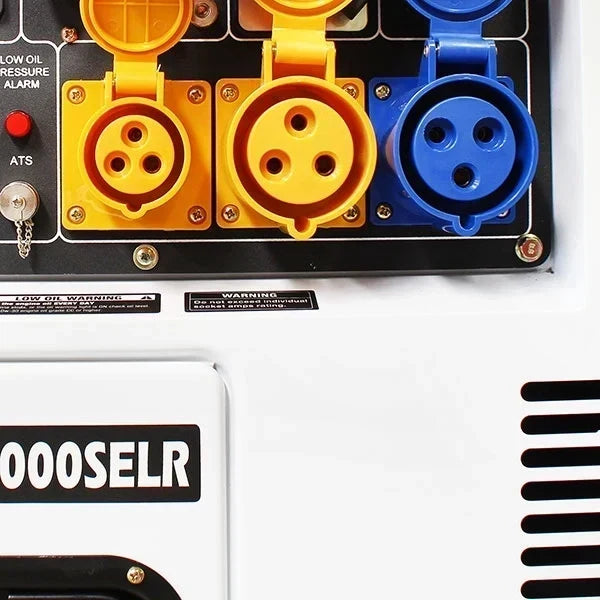

• Connection Method(s) - Sockets - 1 x 115V/16A 1 x 115V/32A 1 x 230V/32A
• Rated Speed (RPM) - 3000
• Frequency (Hz) - 50
• Max/Continuous Current (Amps) - 115v 50 / 43.5 - 230v 25 / 21
• Power Factor (Cosφ) - 1
• Fuel/Power Source - Diesel
• Fuel Tank (Litres) - 25
• Runtime (Hours) @ 100% Load - 14.62
• Noise Level @ 1m 75% load (dB) - 96
• Noise Level @ 7m 75% load (dB) - 70
• Diesel Engine Model - D450E
• Engine Power (hp) @ 3000rpm - 9
• Engine Displacement (CC) - 456
• No. of Cylinders - 1
• Recommended Oil Type - 15w40 / 10w40
• Oil Capacity (Litres) - 1.65
• Oil Filter Part No. - D450-B9+D450-B8
• Aspiration - Natural
• Fuel Regulation/Governor System - Mechanical
• Fuel Consumption (100% Load) [Litres] - 1.71
• Fuel Filter Part No. - D450-R05
• Cooling Forced - Air-Cooled
• Alternator Model - D450/500-S01-4
• Breakers - 1P 30A 1P 21A 1P 13A
• Alternator Type - Brushed
• Voltage Regulation - AVR
• Air Filter Part No. - D450-I4
• Net Weight (kg) - 158
• Gross Weight (kg) - 167
• Wheel Kit? - Yes
• Product Dimensions L x W x H (mm) - 960 x 560 x 890
• Packaged Dimensions L x W x H (mm)- 960 x 560 x 910

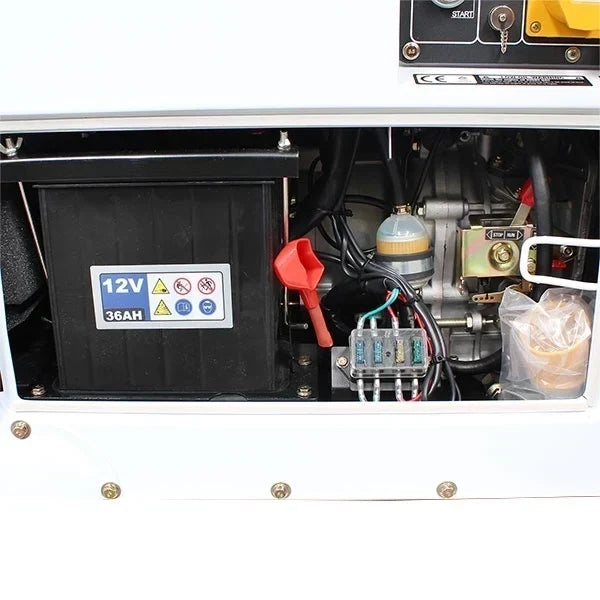

• Battery (Ah) - 12v 36a/h
• ATS / MTS Compatible - Yes
• Control Panel - LED3 DISPLAY
• Warranty - 1 Year / 1000 Hours* (Terms apply)
• Model EAN - 610370632338
• Product Type - Diesel Generator
